• Paint, solid
• Bumper, front, chrome, with Gray lower
• Bumper, rear, painted step, includes pad (Not available with (ZW9) Pickup bed, delete)
• Air dam, Gray
• Wheel flares, front only (With (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. includes rear wheel flares unless (ZW9) Pickup box delete is ordered.)

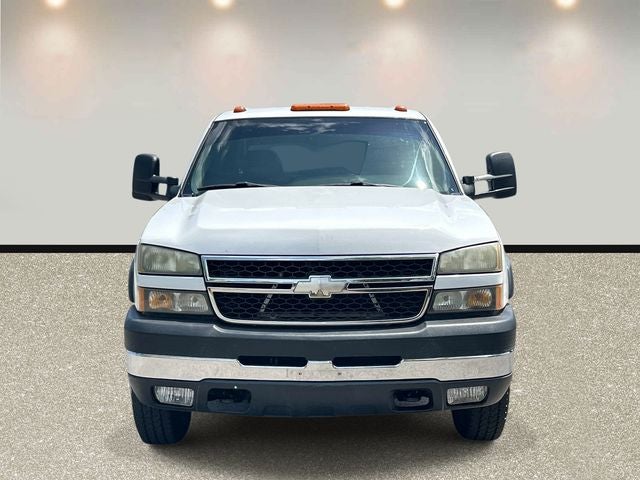

• Grille, color-keyed surround, with chrome accent bar

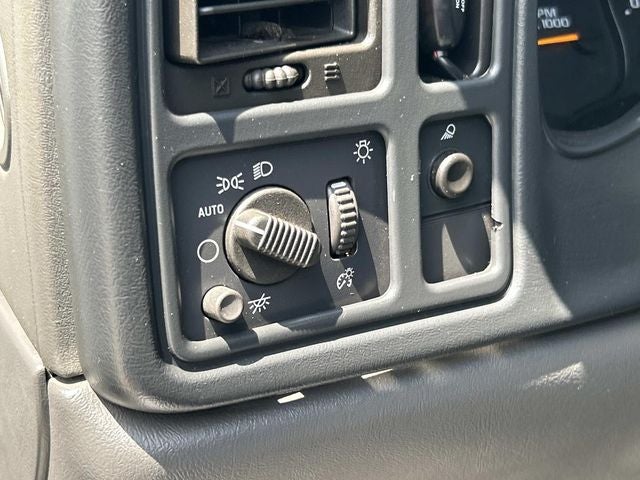

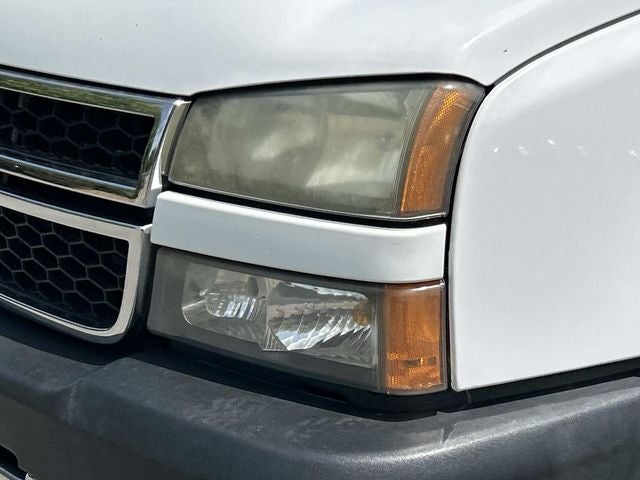

• Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control
• Daytime running lamps, includes automatic exterior lamp control
• Lamps, amber roof marker (Standard on (C7W) GVWR, 11,400 lbs. (5171 kg) only.)
• Lamps, dual cargo area lamps
• Mirrors, outside rearview, foldaway, manual, Black, adjustable (Standard on (C7W) GVWR, 11,400 lbs. (5171 kg) only. - Not available with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg).)
• Glass, Solar-Ray light tinted, all windows
• Wipers, intermittent, front wet-arm with pulse washers

• Seat trim, vinyl

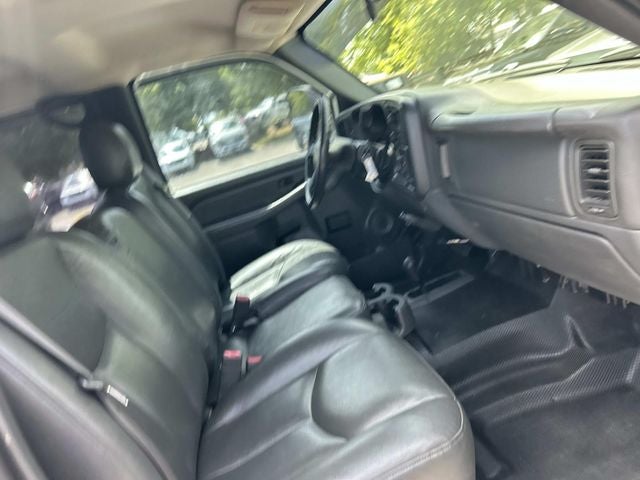

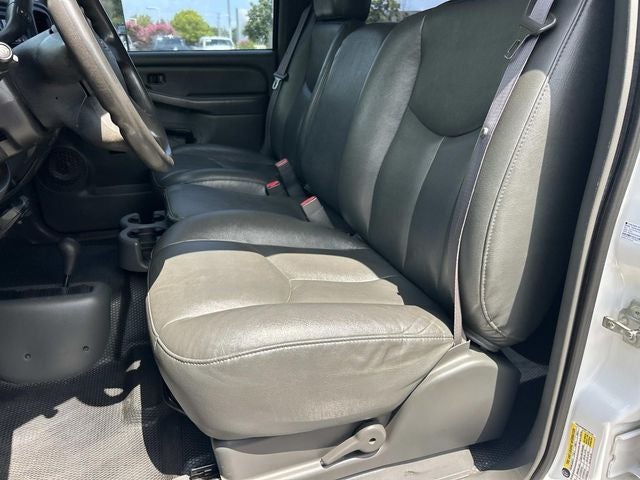

• Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining with outboard head restraints

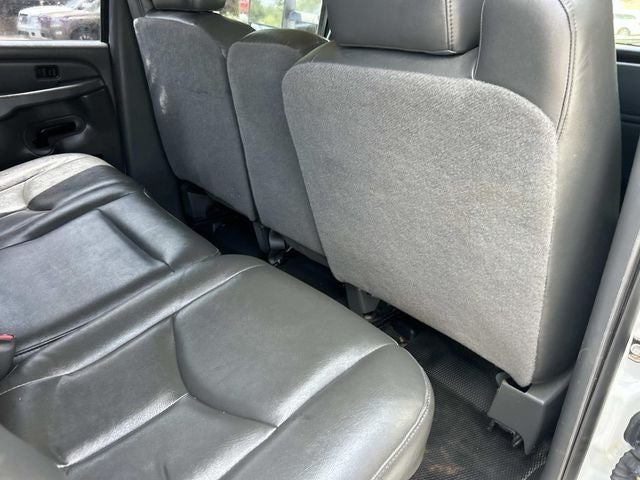

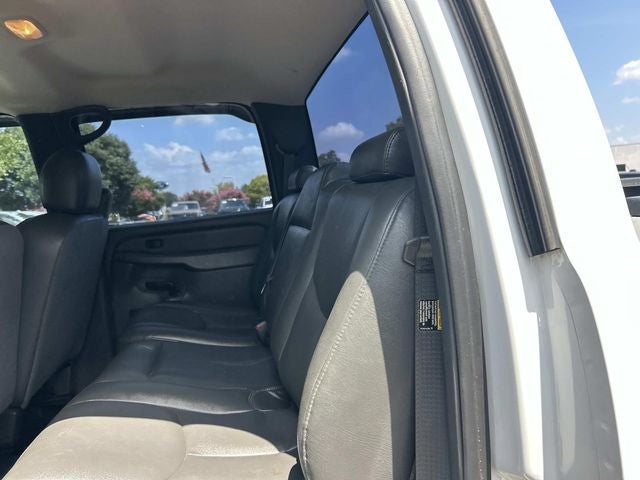

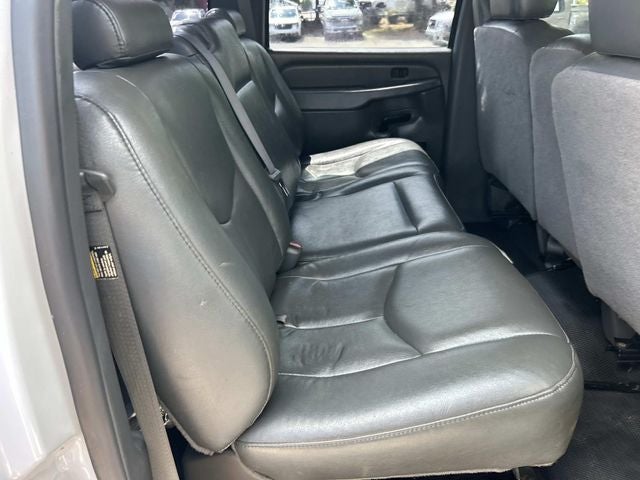

• Seats, rear 60/40 split-bench, flat folding, 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab Models.)
• Floor covering, rubberized vinyl, Black
• Steering wheel, includes theft-deterrent locking feature
• Theft-deterrent system, PASSlock II
• Driver Information Center, monitors numerous different systems depending on vehicle equipment
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder, turn signal on

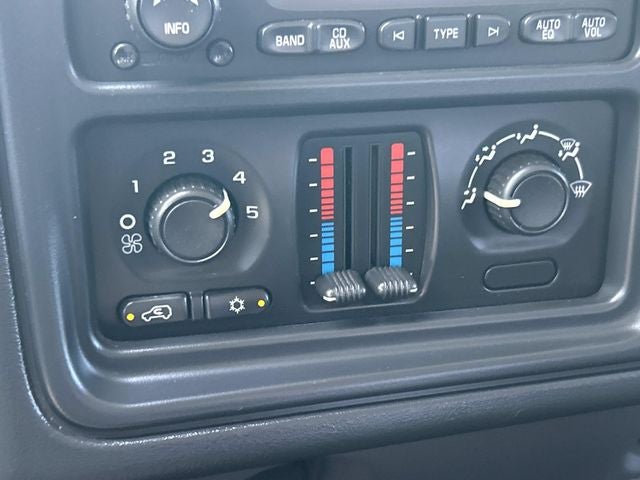

• Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger

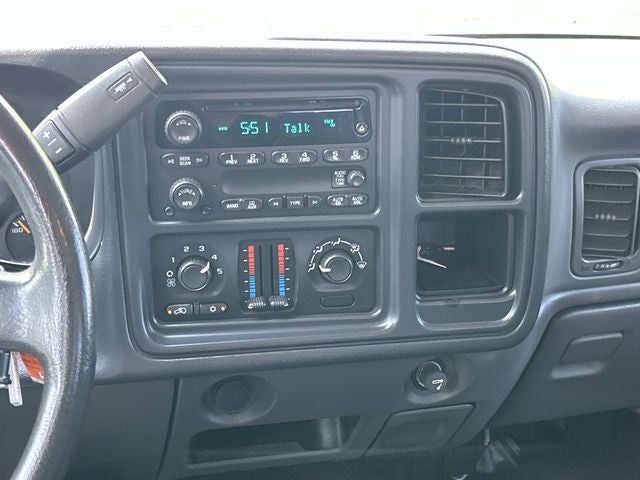

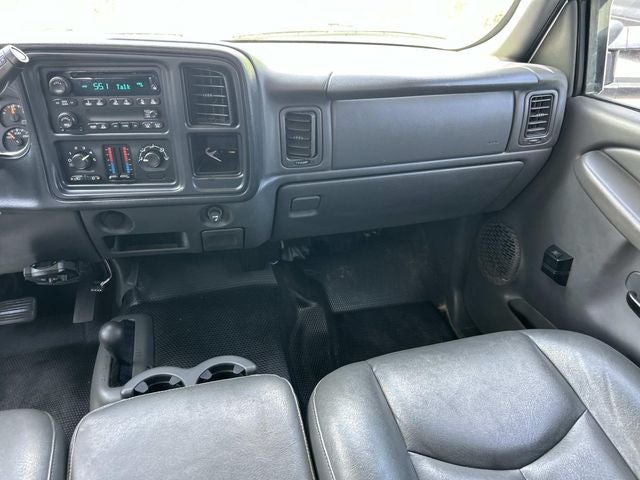

• Sound system, ETR AM/FM stereo, includes seek-and-scan, and digital clock
• Sound system feature, 4-speakers
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models)

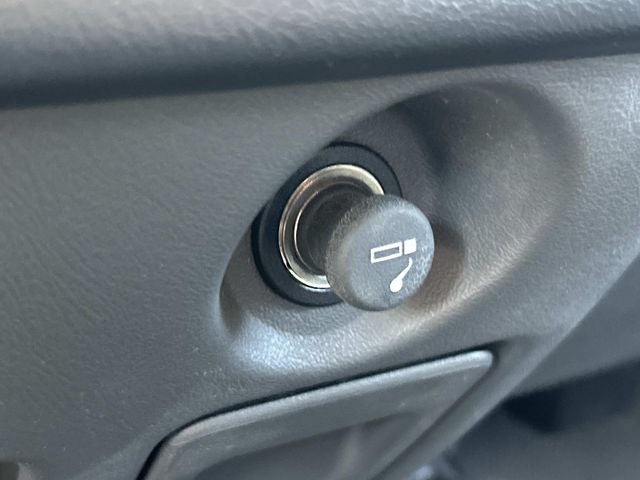

• Cigarette lighter, on instrument panel
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Mirror, inside rearview, manual day/night
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models.)
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.)

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.)
• Daytime running lamps, includes automatic exterior lamp control

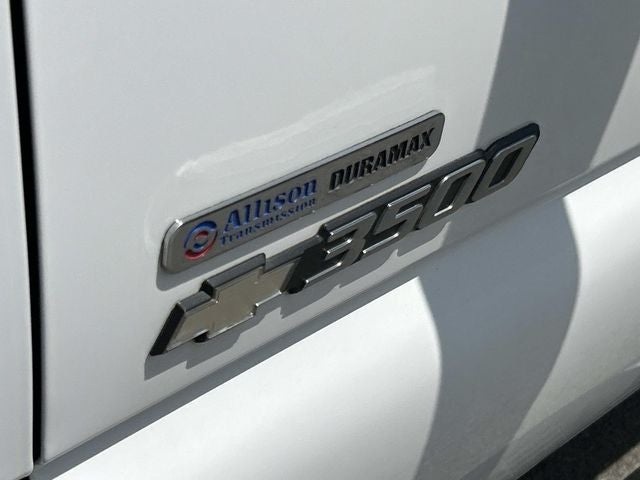

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (360 HP [268.0 kW] @ 3200 rpm
• 650 lb.-ft. [881.0 N-m] @ 1600 rpm) Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (KG3) Alternator
• 145 amps
• (K47) Air cleaner
• high capacity and (K05) Engine block heater)

• Heavy-Duty Handling/Trailering Suspension Package
• Heavy-Duty Power Package
• Heavy-Duty Trailering Equipment
• Preferred Equipment Group 1WT
• Skid Plate Package
• 4 Speakers
• AM/FM radio
• Air Conditioning
• Front dual zone A/C
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Dual Heavy-Duty 770 CCA Batteries
• Fully automatic headlights
• Electronic Cruise Control w/Set & Resume Speed
• Heavy-Duty Rear Locking Differential
• Engine Block Heater
• Heavy-Duty Auxiliary External Transmission Oil Cooler
• Bumpers: chrome
• Manual Camper-Style Outside Rear-View Mirrors

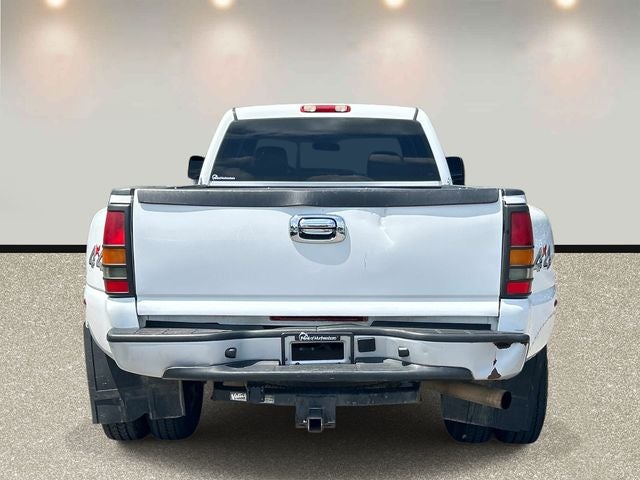

• Rear step bumper

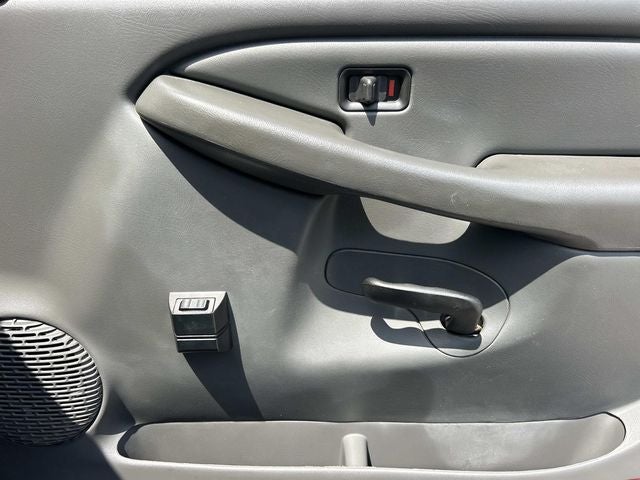

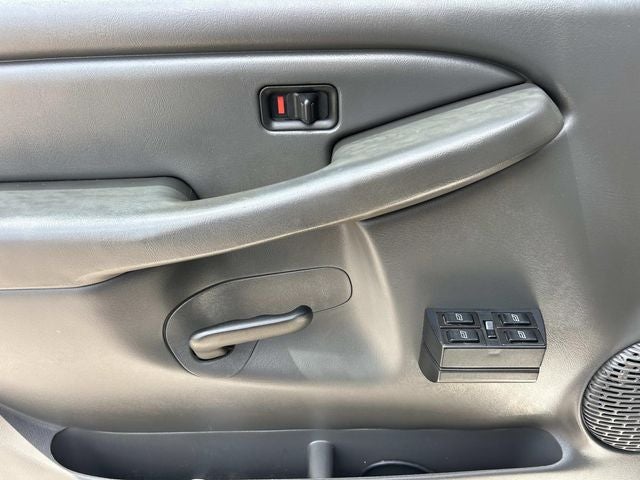

• Driver door bin
• Passenger vanity mirror

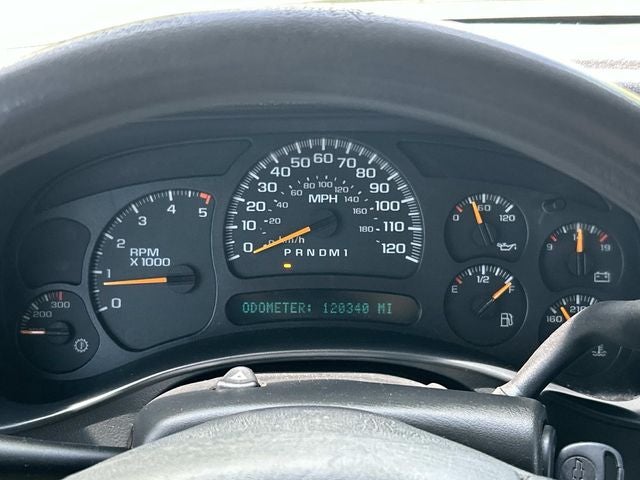

• Tachometer
• Tilt steering wheel
• Voltmeter
• Front 40/20/40 Split-Bench Seat

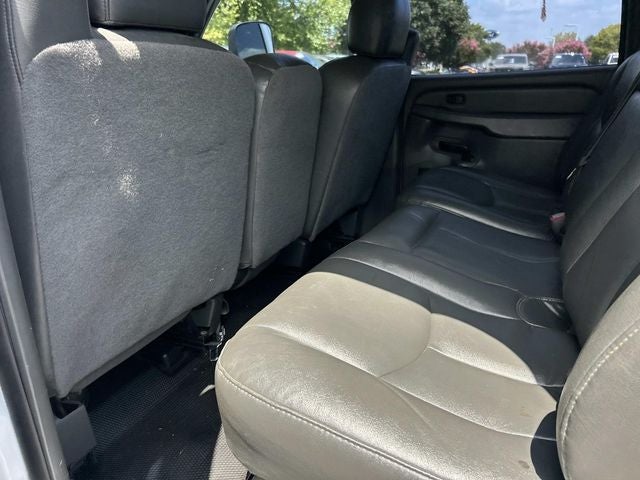

• Split folding rear seat
• Vinyl Seat Trim

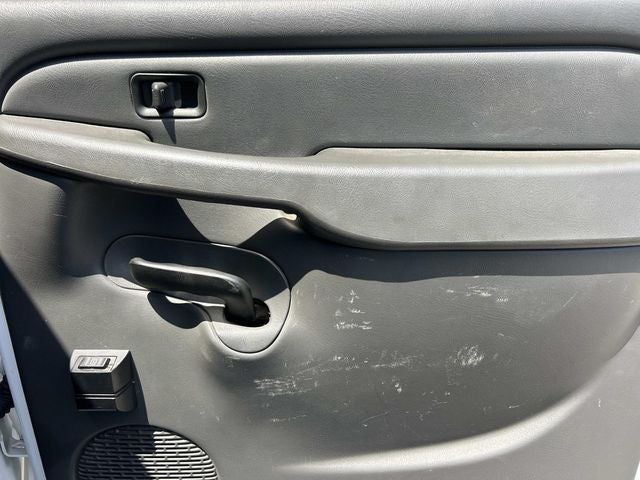

• Passenger door bin
• Variably intermittent wipers
• DIESEL
• 4x4/AWD

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3474
• Curb Weight - Rear (lbs): 2900
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1380
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2300
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XEC
• Rear Tire Order Code: XEC
• Spare Tire Order Code: XEC

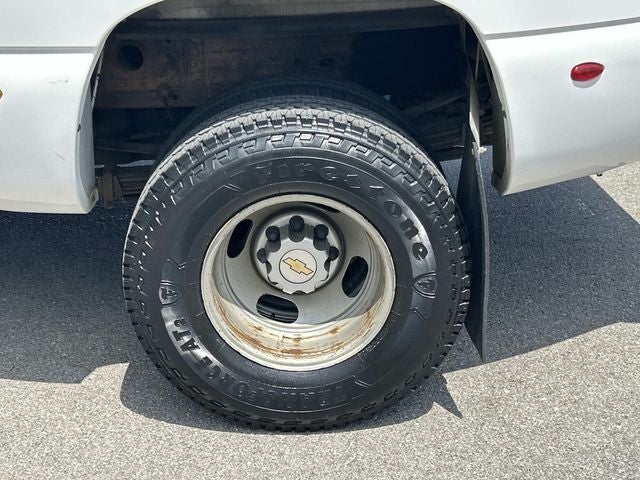

• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Spare Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2430
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 55.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 258.5
• Width, Max w/o mirrors (in): 96.1
• Height, Overall (in): 77.3
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

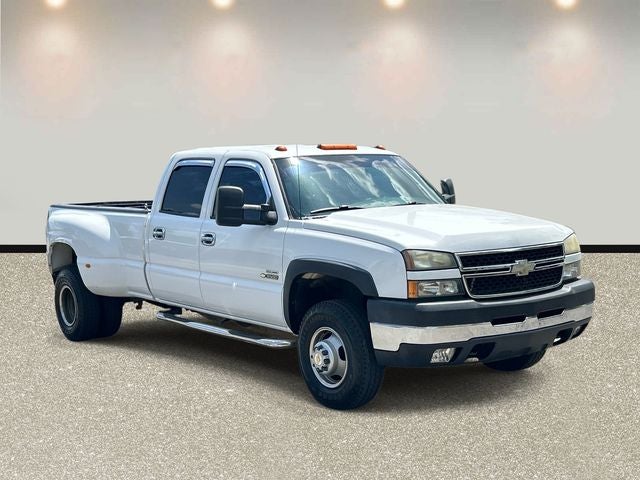

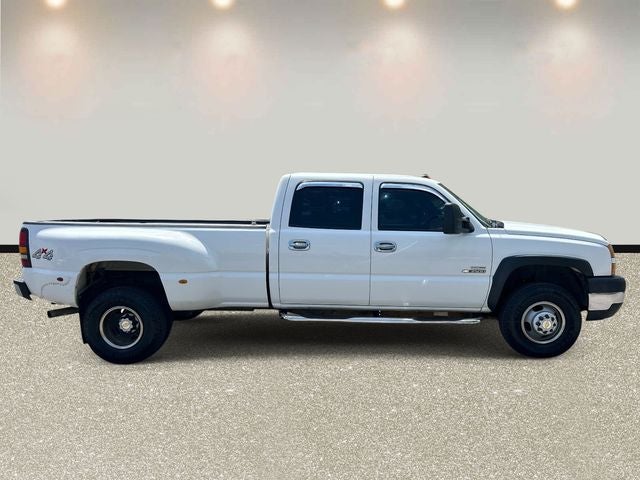

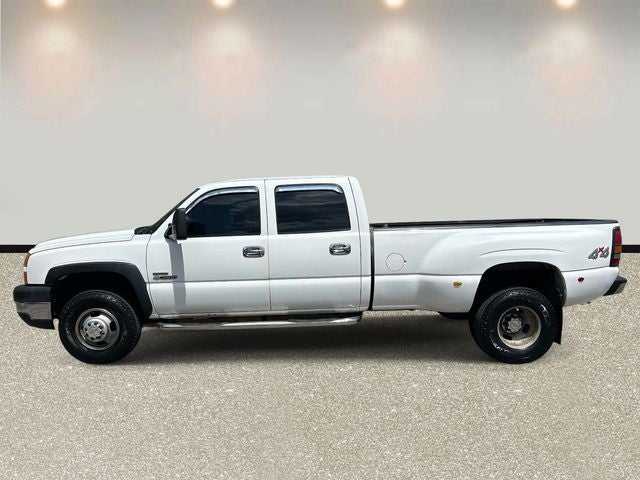

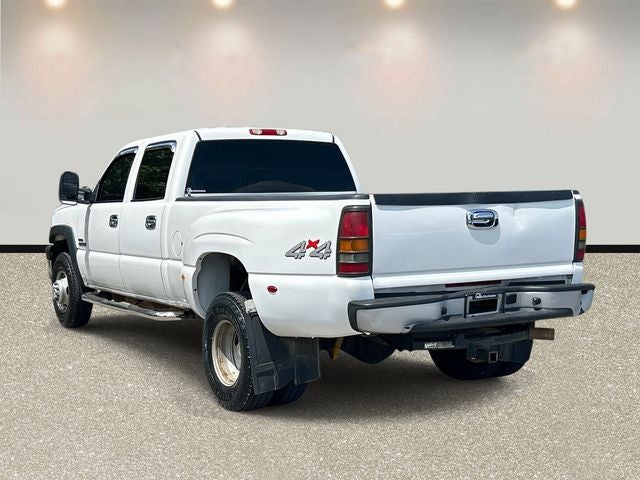

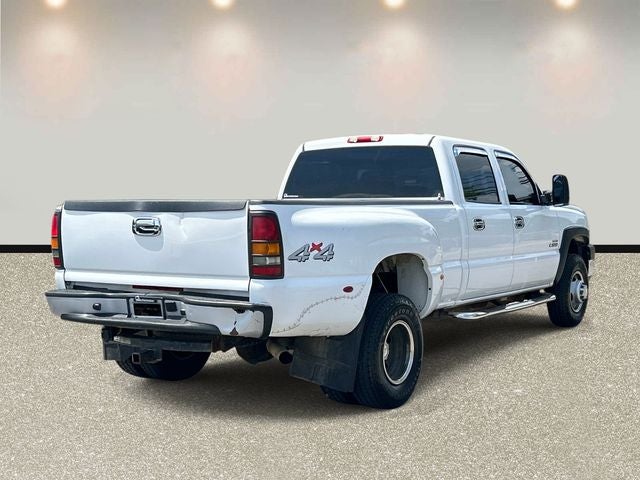

• Vehicle Name: Chevrolet Silverado 3500
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
